The following mounting bracket options are available:
Prism: SKU 775470
Weaver Auto: SKU 774915
Weaver Long: ref 774679
BC: item 774556
Characteristics of the scope:
Visual magnification, x 2.5
Lens diameter, mm 50
Image intensifier generation 1
Resolution, lines/mm 35
Field of view, degrees 13
Detection range, m 200
Minimumfocusing distance, m 5
Eyepiece refocusing limit, diopter ±2.5
Built-in IR illuminator Laser
Equivalent power, mW 125
Wavelength, nm 780
Wavelength, nm 780
Laser class according to IEC 60825-1:2007 (safety of laser products) 1
Battery 3V/2xAA
Removal of the exit pupil, mm 45
Operating temperature range, deg. Celsius -30 °С to +40 °С
Protection class IP code IPX4
Height, mm 100
Width, mm 90
Length, mm 270
Weight, kg 0.98
Sight description:

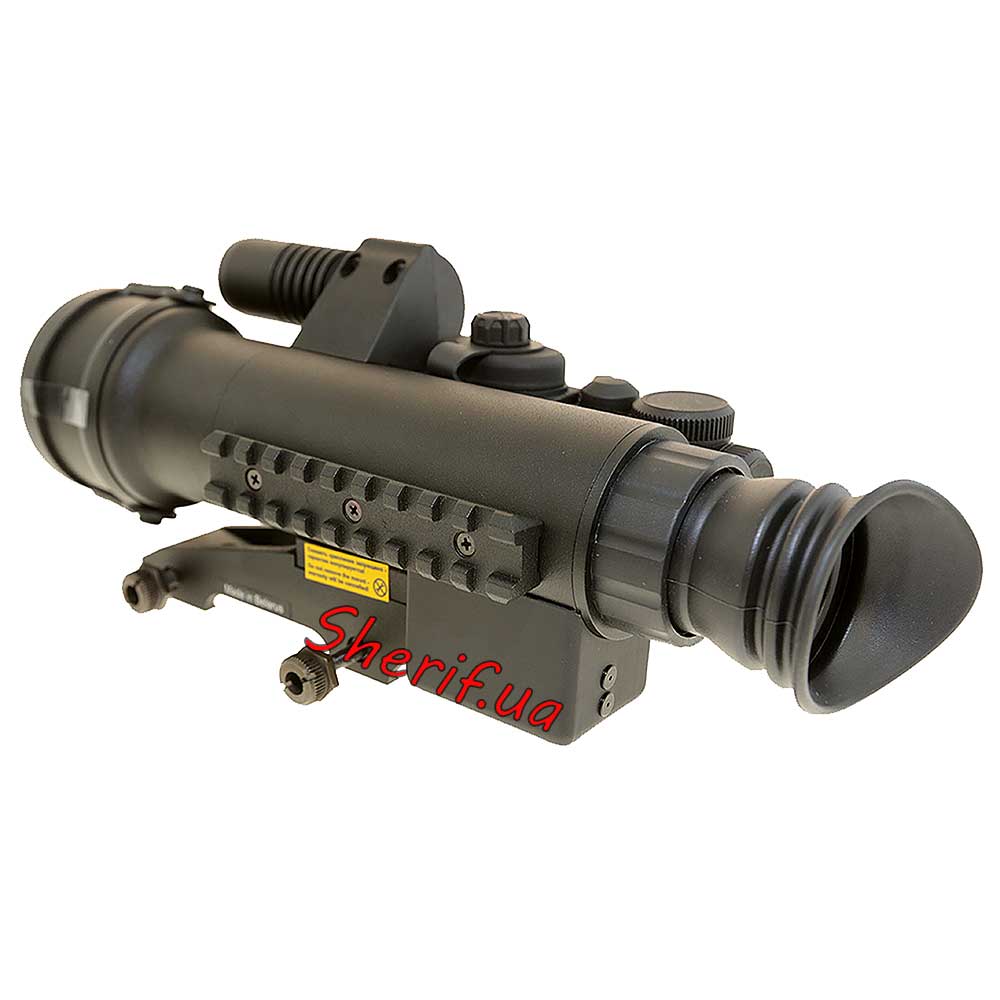

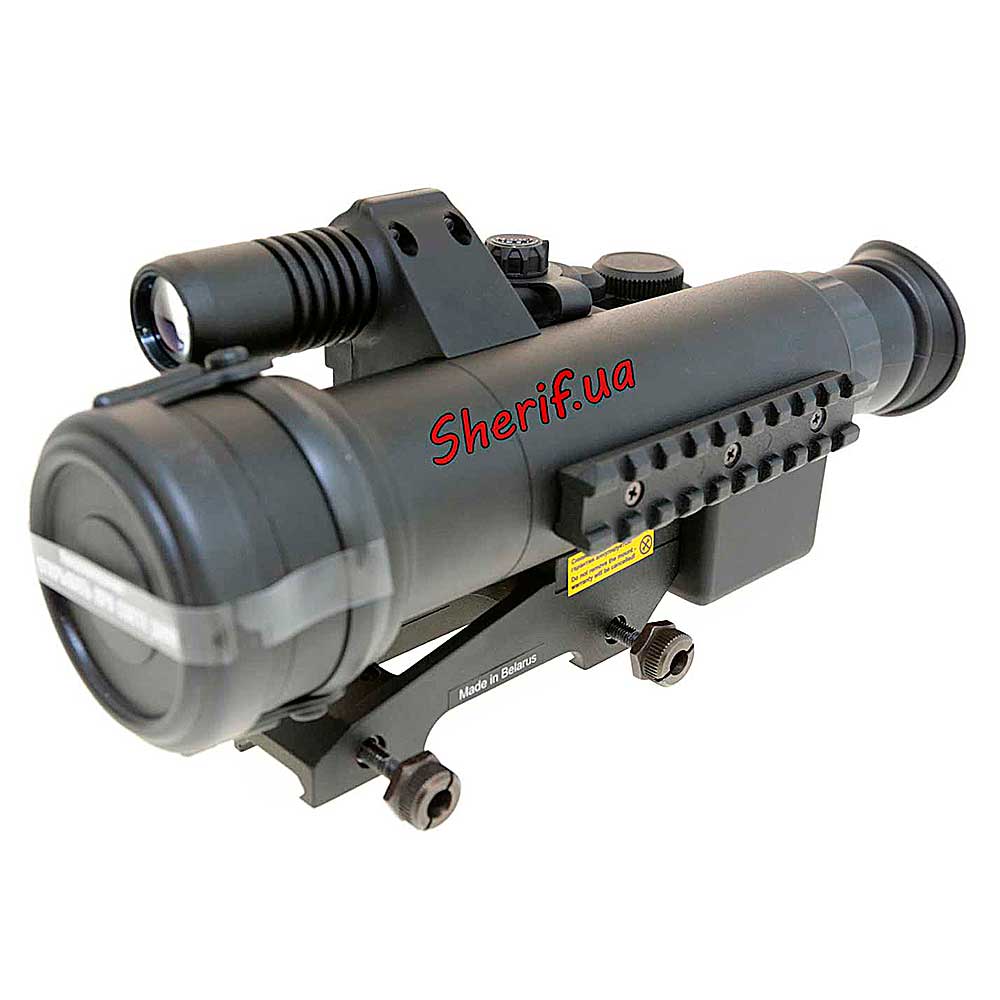

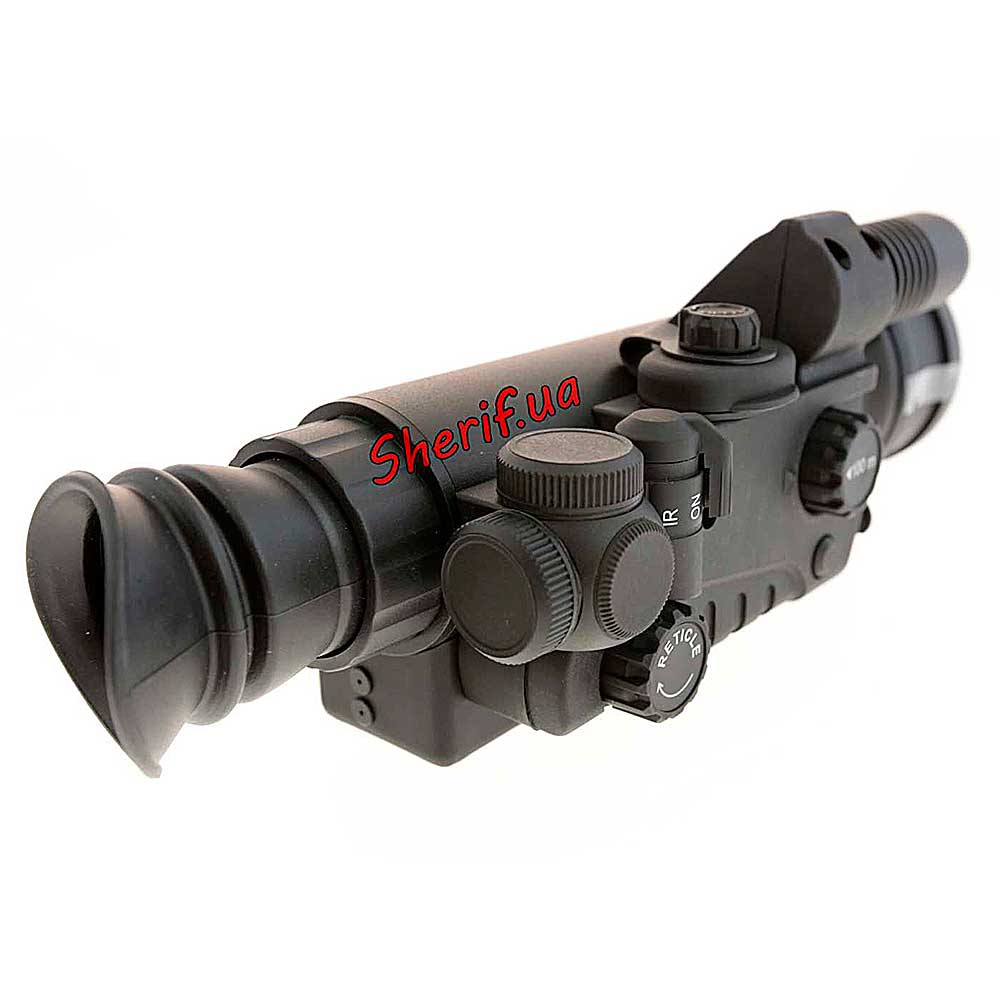

Night vision scope Sentinel 2.5х50 L of the 1st generation is designed for observation and aimed shooting at twilight and at night. This is a passive device that functions effectively without artificial light sources. The built-in laser IR illuminator allows you to increase the observation distance up to 200 m. The sight provides for changing the color of the rangefinder grid depending on the surrounding conditions. The red mark is used in conditions of good visibility of the target, the green mark is used when the image contrast is insufficient.
The Weaver 7/8" bracket, installed on the left side of the body, is used to install additional equipment, accessories (IR illuminator, microphone, LCC).
In addition to the standard ones, it has the function of instant activation. This is convenient when there is no constant monitoring, so that by quickly turning on the device, you can orient yourself, aim and shoot.
The lens cap is securely attached to the body and protected from loss. During observation or shooting, the cover must be moved to the side.
Laser illuminator 780nm corresponds to the first classsecurity ss. When the flashlight is activated, the observation distance can reach 200 m.
- Built-in laser IR illuminator
- Rangefinder reticle
- High resolution and image quality across the screen
- EOFOptimal magnification 2.5x
- Minimum observation distance 5 meters
- Lightweight and durable titanium body
- Setting the reticle illumination intensity
- IPX4 waterproof rating (splash-proof)
- Ergonomic design
- Autonomous power supply with stabilizationth voltage
- Vertical position of the battery - reliability of power supply when firing
- ECLIPSE protective flip-up objective
- Weaver MIL-STD-1913 Accessory Mount
- Remote control
- Wide range of mounts
- The possibility of photo and video shooting.

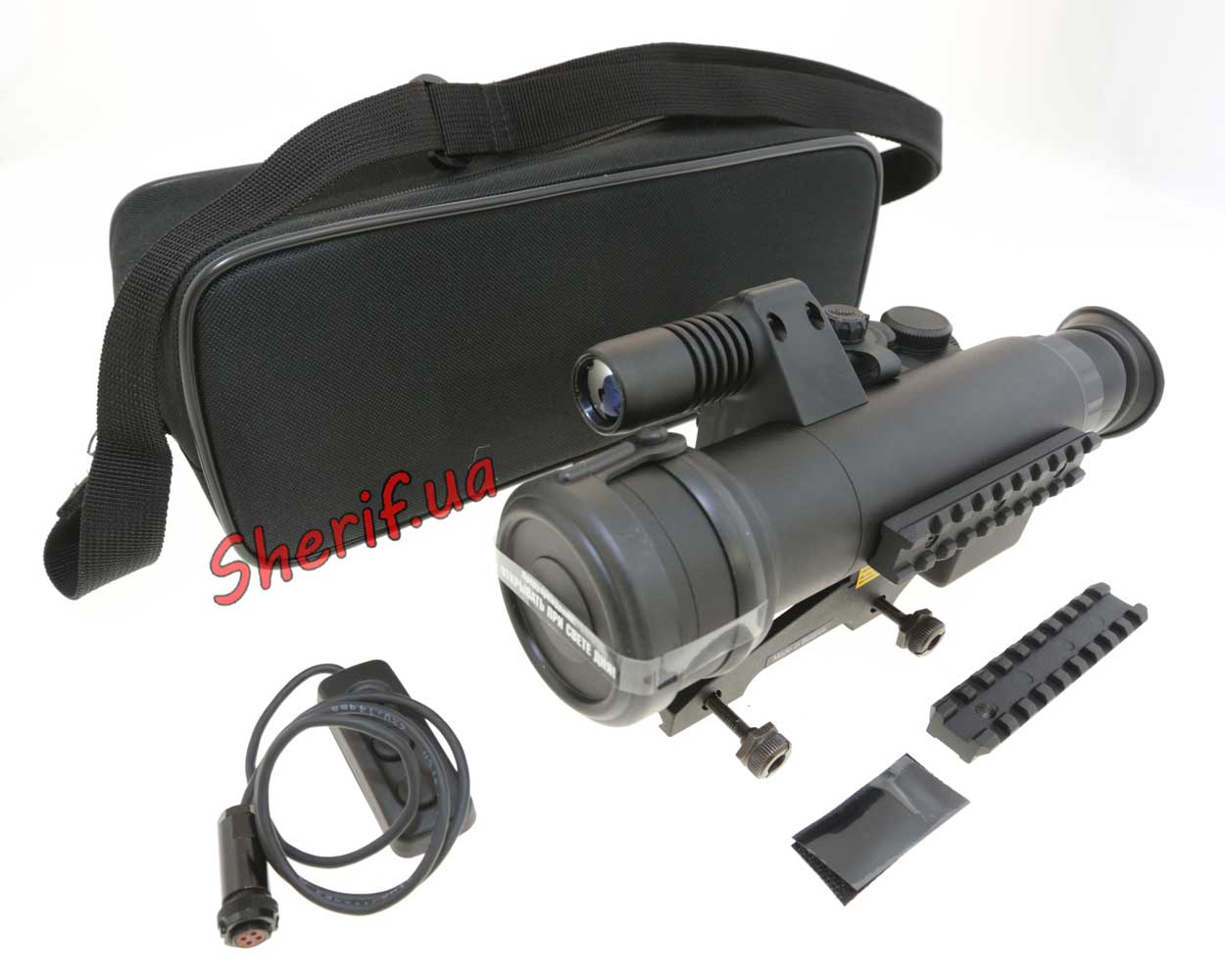

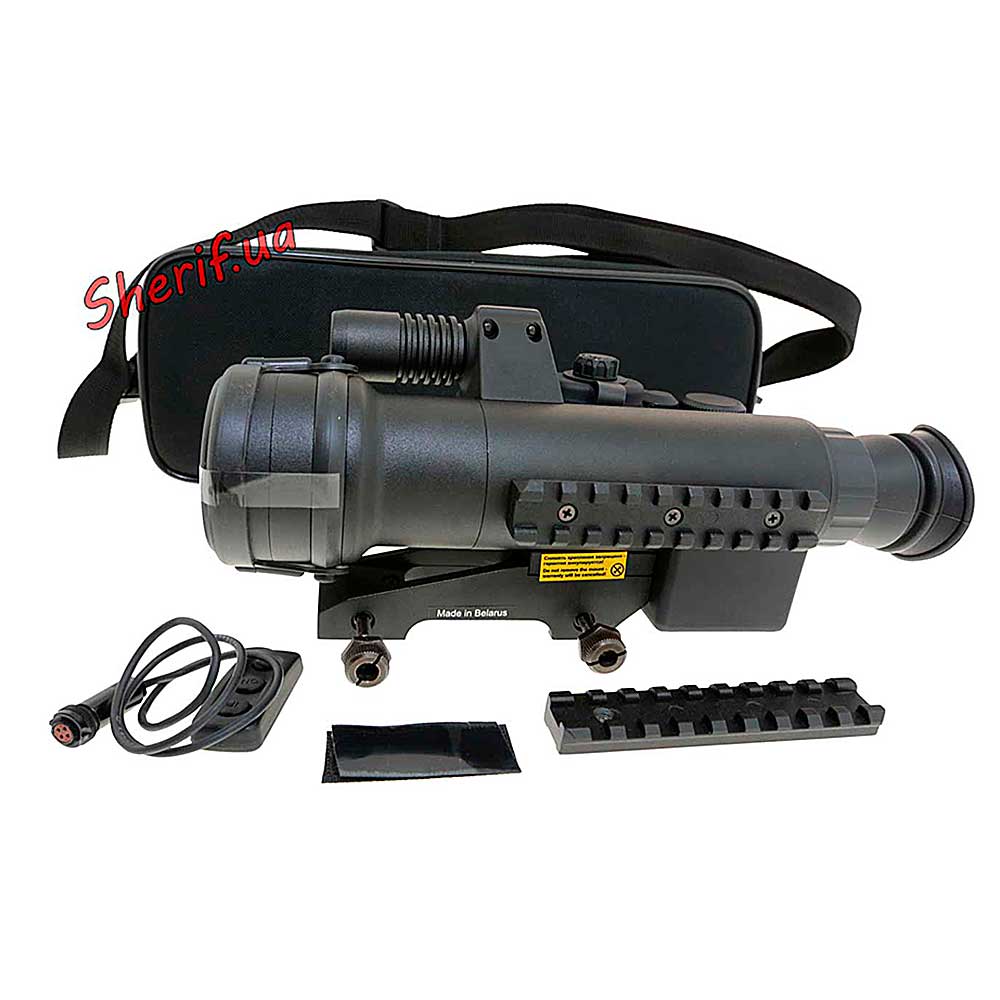

Included items: Sentinel 2.5x50L night vision scope, case, remote control, instruction manual, warranty card
