Exelon 4x50 night vision device specifications:
- Image intensifier tube type: Super (1+)
- Visual magnification, x 4
- Lens diameter, mm: 50
- Resolution in the center of the field of view, strokes: 40
- Resolutions at the edge of the field of view: 32
- Field of view angle, deg: 13
- Maximum observation distance, m: 250
- Diopter adjustment range of the eyepiece, diopter: ±4
- Operating voltage, V: 3(1xCR123A)
- IR illuminator range, m: 100
- Thread attachment size to tripod, inch: 1/4
- Max. working time fromsingle battery (without/with IR), hour: 50/8
- Temperature range: -30°C~ +40°C
- Degree of protection against moisture, IP (according to IEC 60529): IPX4
- Dimensions, mm: 1198x87x60
- Weight of the device, kg: 0.5

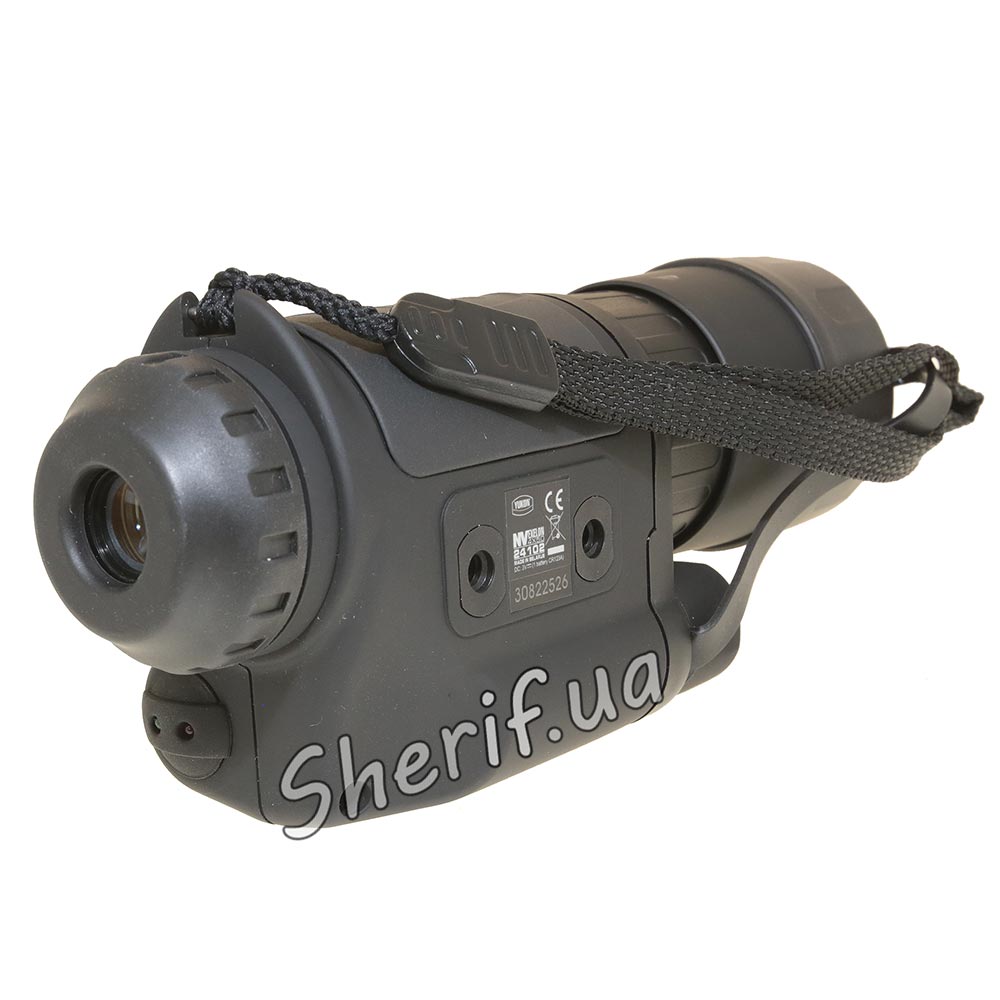

Description of Exelon 4x50 night vision device:
The night vision device Exelon 4x50 is a professional device with high image quality over the entire field of view with a Super image intensifier tube. The special optical scheme of the device lens, complete with a specially designed image intensifier tube of a new type, made it possible to provide a high resolution method.bnost and lack of distortion over the entire field of view. The device can operate both in the passive mode (without artificial illumination of the observed objects) and in the active mode (with an infrared illuminator). A plus is the protection against moisture when using night vision devices during light rain or snow.
The Exelon 4x50 device is intended for observation of natural objects, protection and orientation on the ground in a wide range of natural night illumination - from twilight to complete darkness. For normal observation at oIn the absence of the moon, the presence of clouds and in complete darkness, the device has a built-in infrared illuminator. The device is equipped with two 1/4 inch sockets, with which it can be attached to a mask and used as glasses.
The device is completely self-contained and can work up to 50 hours on one CR123A element at temperatures from -30°C ~ + 40°C. Due to the spherical shape of the photocathode of the image intensifier tube, a uniformly high resolution is provided over the entire surface of the screen, on average from 42 lines/mm in the central zone to 32 lines/mm along the edge. combinationsThe combination of an image intensifier tube and a 50 mm lens according to the R-Contact scheme gives a clear, geometrically accurate image, characterized by the complete absence of distortion even in the peripheral areas of the screen.
