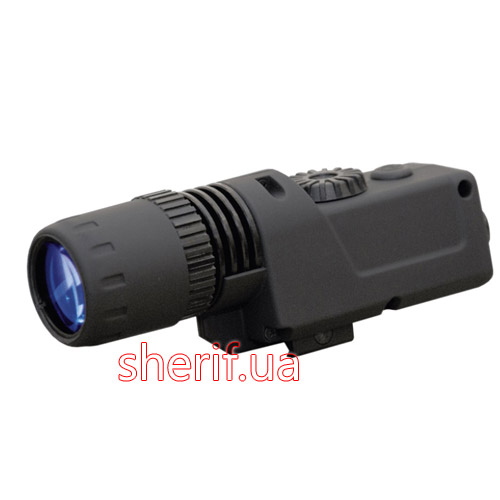

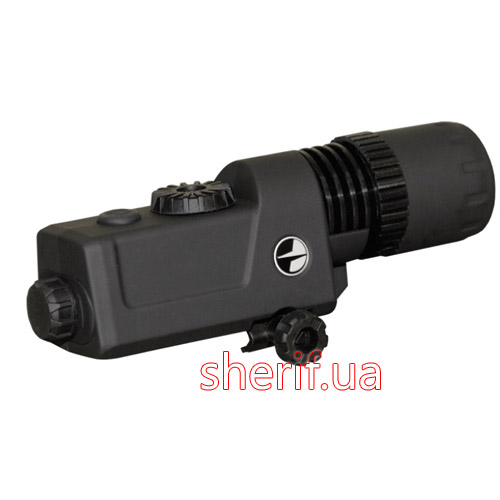

02075 Pulsar Laser IR Flashlight - 805
Electrical/optical characteristics:
Range of change of equivalent power, mW: 30 ... 200
Diode type: LED
IR illuminator wavelength, nm: 805
Power supply, V / Type of power supply elements: 3/2хАА
Beam divergence angle, °: 5.7...10
Average operating time from one set of batteries, hours: 2
Physical and performance characteristics:
Mount type:Weaver | 1/4"
Operating temperature range, ° С: - 20 ... + 40
Dimensions, mm: 132x45x52
Weight (without batteries), kg: 0.14
Compatibility with NV devices: all types of night vision devices
Adjust Spot Position:
The design of Pulsar IR flashlights allows you to adjust the position of the spot in the field of view of the night vision device horizontally and vertically. To do this, loosen the ring that fixes the optical unit, align the spot of the IR illuminator in the center of the field of view (NVD must be turned on) andTo fix the ring.
Power adjustment:
The power is adjusted by turning the wheel located on the case next to the power button. Parallel adjustment of the power and the angle of beam divergence makes it possible to achieve optimal illumination of the object in specific observation conditions.
Mount:
As a mounting device, Pulsar IR flashlights use a small knot for installation on Weaver-type rails, which are found on the bodies of most modern night lamps.rifles and observation devices, and are also widely used on hunting or sporting weapons and pneumatics. The kit includes an adapter for mounting lights on night vision devices with a socket with a diameter of ¼ inch.
